Introduction
Advanced Machine Integration

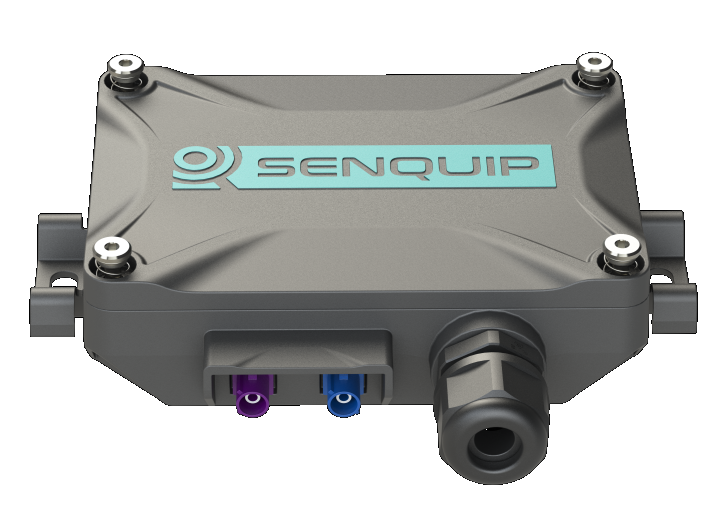

Senquip QUAD-C3
The Senquip QUAD-C3 is designed for monitoring and control of complex industrial machines and mixed fleets requiring deep integration with multiple systems and networks. Whether installed on a rock crusher, train, dust extractor, pump system, compressor, or other specialist equipment, the QUAD-C3 is engineered for applications where telemetry forms part of the machine architecture.
With dual CAN interfaces, versatile I/O, industrial communications, external antennas, and full edge processing, the QUAD-C3 can connect to engines, controllers, sensors, operator systems, and third-party equipment. This makes it ideal for machines that require more than simple monitoring.
The QUAD-C3 provides a powerful platform for machine monitoring, local control, protocol handling, data buffering, and custom integration across complex industrial equipment.
Typical Applications
The QUAD-C3 is best suited to complex machines and mixed fleets where multiple interfaces, control requirements, and machine networks must be brought together in a single telemetry solution for control and monitoring.
|
|
|
|
|---|---|---|---|
Trains and rail equipment |
Buses and electric vehicles |
Mining and quarry equipment |
Pump control and monitoring |
|
|
|
|
|---|---|---|---|
Agricultural equipment |
Automation and control systems |
Cranes and lifting equipment |
Specialised industrial machinery |
Key Features
External LTE, Satellite and GNSS antennas for challenging RF environments
Direct-to-Cell satellite-ready connectivity
Long-life LTO battery with 5000-cycle life
GNSS location, vibration, pitch, roll and temperature monitoring
Dual CAN FD interfaces for separation of engine and sensor networks
RS232, RS485 and Modbus support
Five versatile I/O supporting analogue, digital, pulse, frequency, resistance and 4-20mA sensors
Precision voltage output and configurable sensor power supplies
Programmable edge processing using JavaScript
Local control and custom protocol handling
Internal memory for buffering and autonomous operation
Designed for complex machine integration
What is included with your Senquip QUAD
When you open your the Senquip QUAD box, the following are included:
1 x Senquip QUAD
1 x GNSS and 4G LTE combination antenna
1 x 2-hole and 1 x 3-hole gland insert

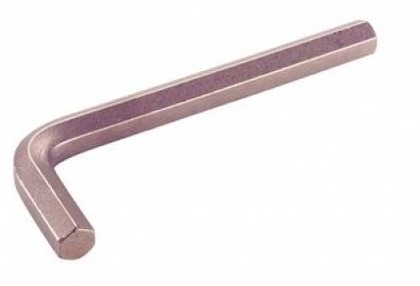

1 x 3mm Allen key
1 x Getting started guide
