Introduction

Ultimate Outdoor Reliability

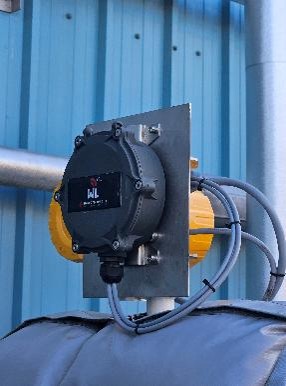

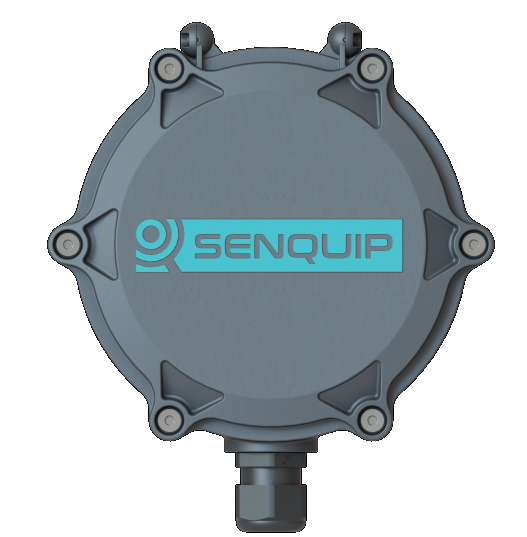

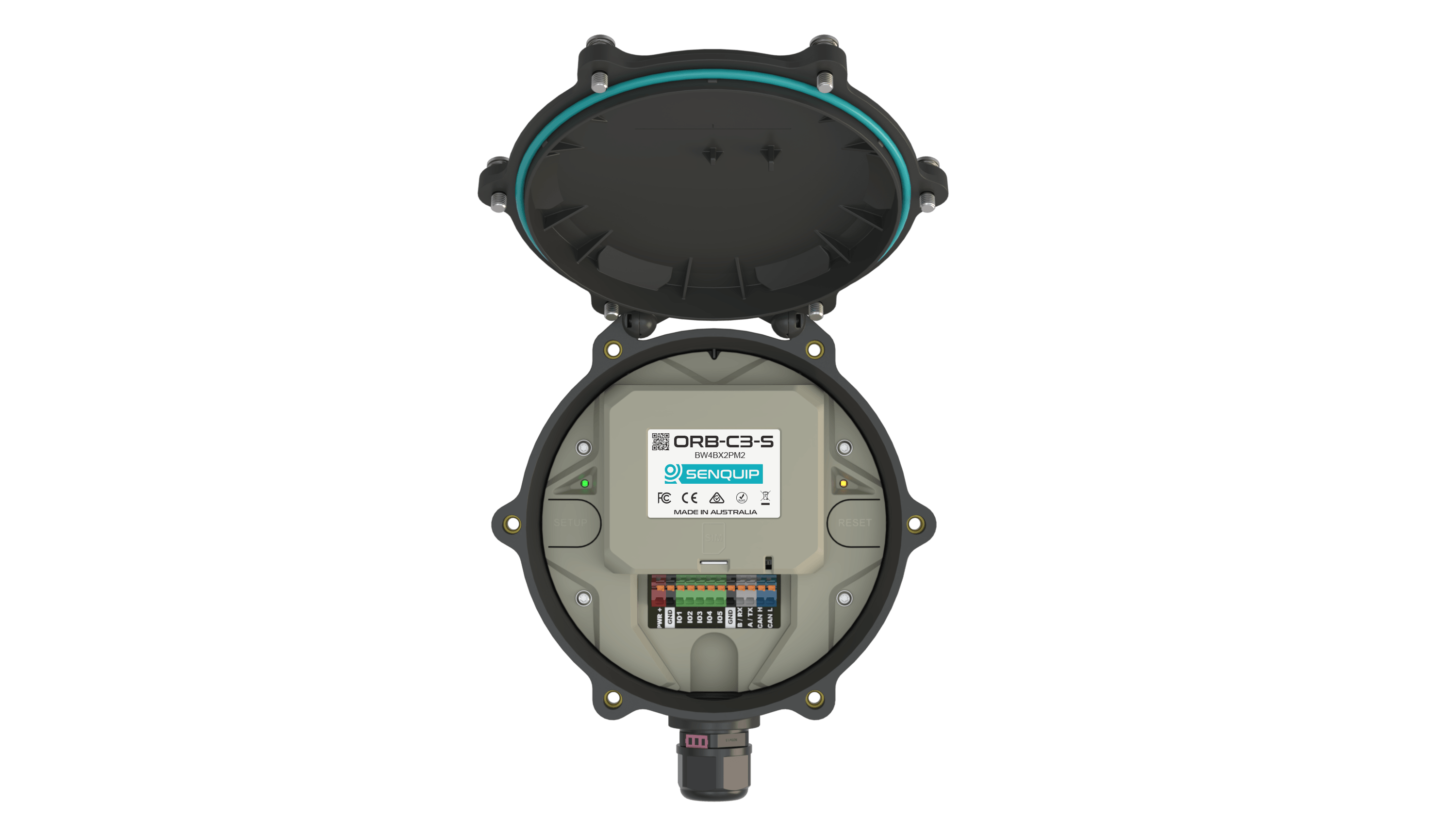

The Senquip ORB-C3 is designed for monitoring and control of outdoor industrial assets operating in harsh, exposed, and power-constrained environments. Whether mounted on a pump, water tank, weather station, lighting tower, generator, or other remote asset, the ORB-C3 is engineered to deliver reliable telemetry where environmental exposure and long-term autonomy are primary considerations.

Its rugged construction, internal antennas, larger LTO battery, and support for solar charging minimise maintenance requirements while ensuring reliable operation in locations where power availability, accessibility, and environmental conditions can be challenging.

With extensive sensing, industrial communications, configurable I/O, and full edge processing, the ORB-C3 provides a powerful platform for monitoring and controlling outdoor industrial equipment.

Typical Applications

The ORB-C3 excels at monitoring and control of outdoor industrial sensors and assets in harsh or power-constrained environments. It is particularly well suited to applications involving flow, pressure, level, environmental, and other field-mounted sensors.

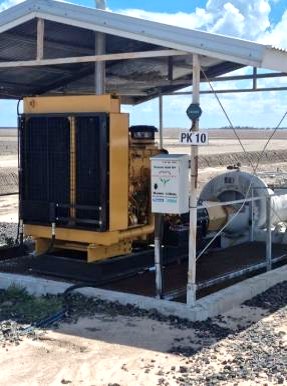

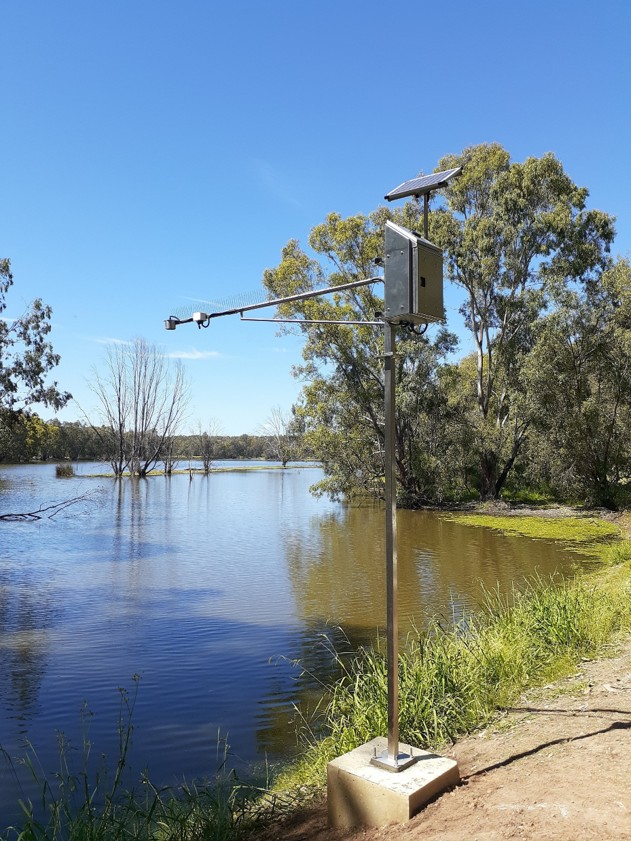

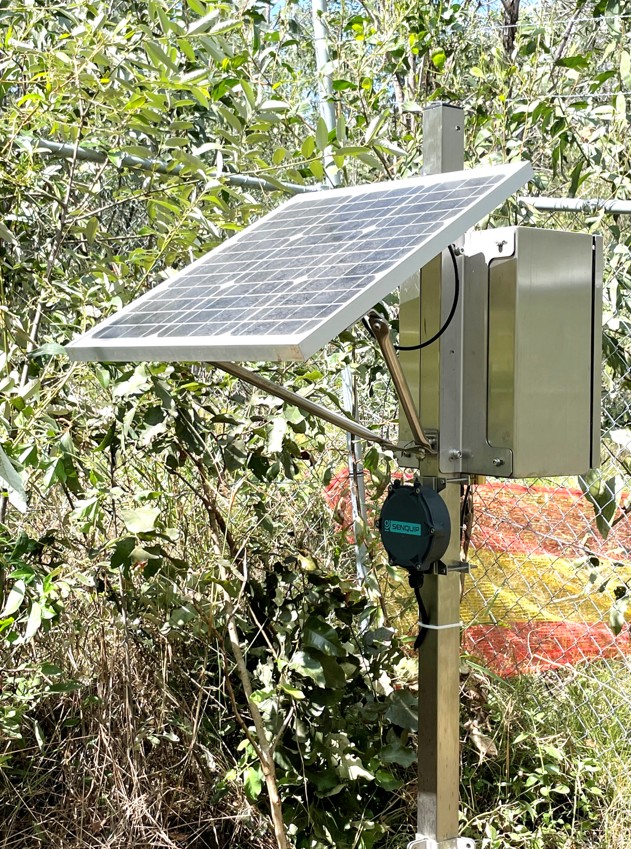

Pumps and irrigation systems	Exposed machine monitoring	Weather stations and rain gauges	Air quality and residual gas

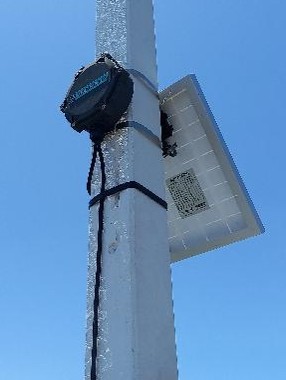

Water, fuel and chemical storage tanks	Pressure, flow and temperature monitoring	Remote infrastructure monitoring	Solar-powered monitoring stations

Key Features

Internal Wi-Fi, LTE, Satellite, Bluetooth and GNSS antennas
Direct-to-Cell satellite-ready connectivity
Long-life 1500mAh LTO battery with 5000-cycle life
Solar charging and power-constrained operation
GNSS location, vibration, pitch, roll and temperature monitoring
CAN FD, RS232, RS485 and Modbus support
Five versatile I/O supporting analogue, digital, pulse, frequency, resistance and 4-20mA sensors
Precision voltage output and configurable sensor power supplies
Programmable edge processing using JavaScript
Local control and custom protocol handling
IP67 enclosure with stainless steel mounting hardware
Internal memory for buffering and autonomous operation

What is included with your Senquip ORB

When you open your ORB box, the following are included:

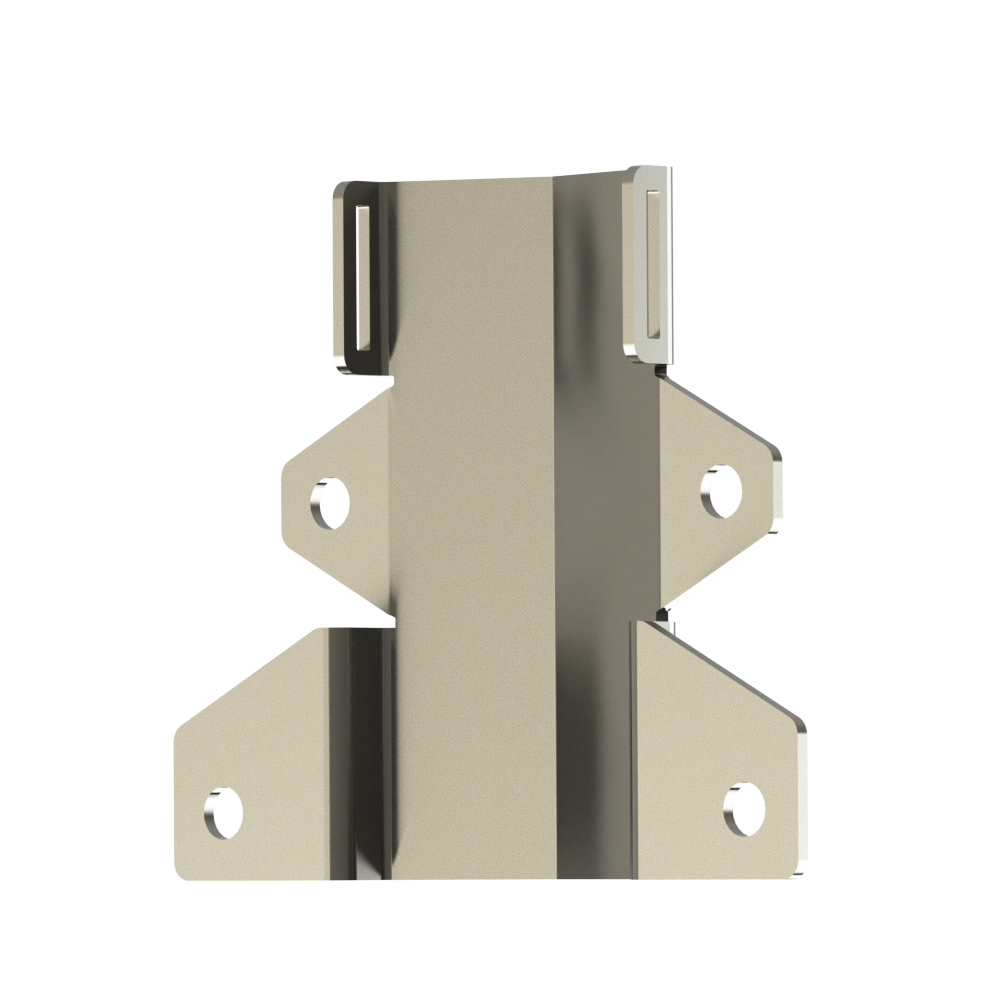

orb — 2 x Wall and pole mounting brackets

orb — 1 x 2-hole and 1 x 3-hole gland insert
