Mechanical Specification

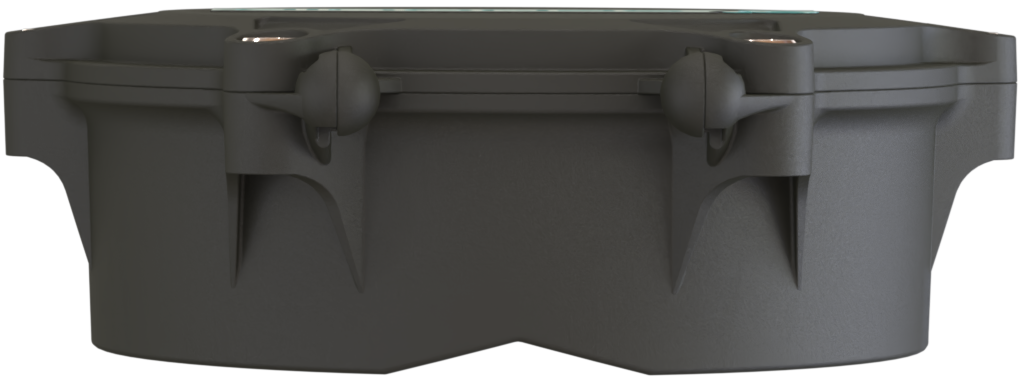

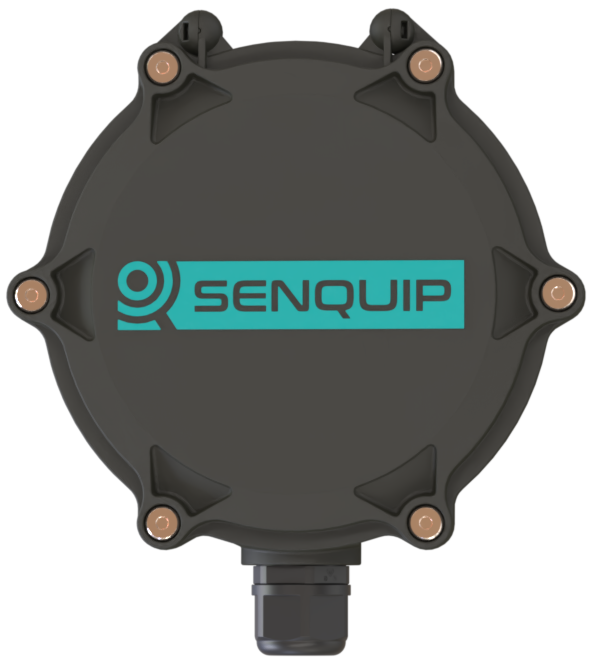

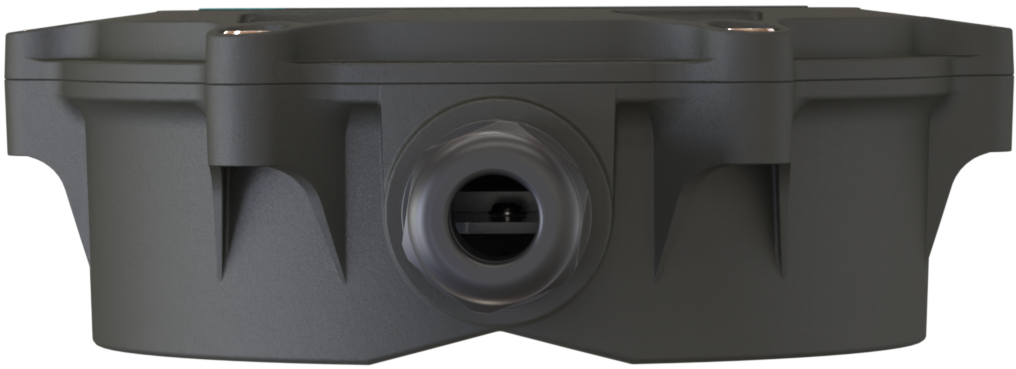

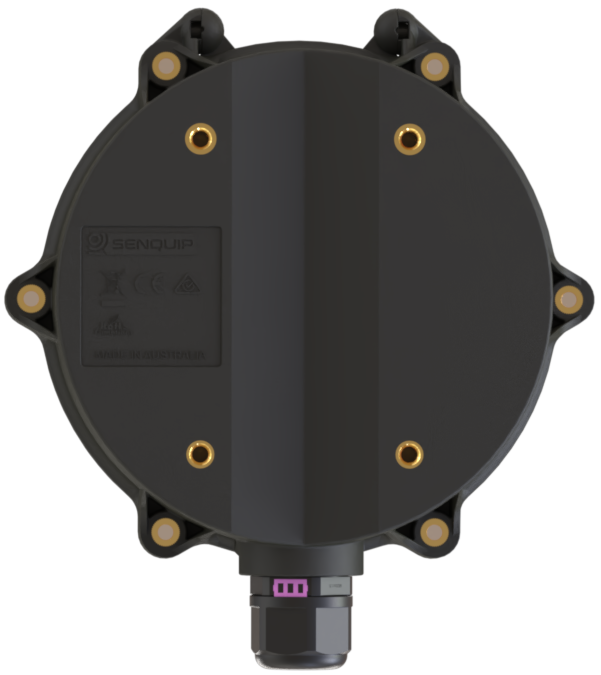

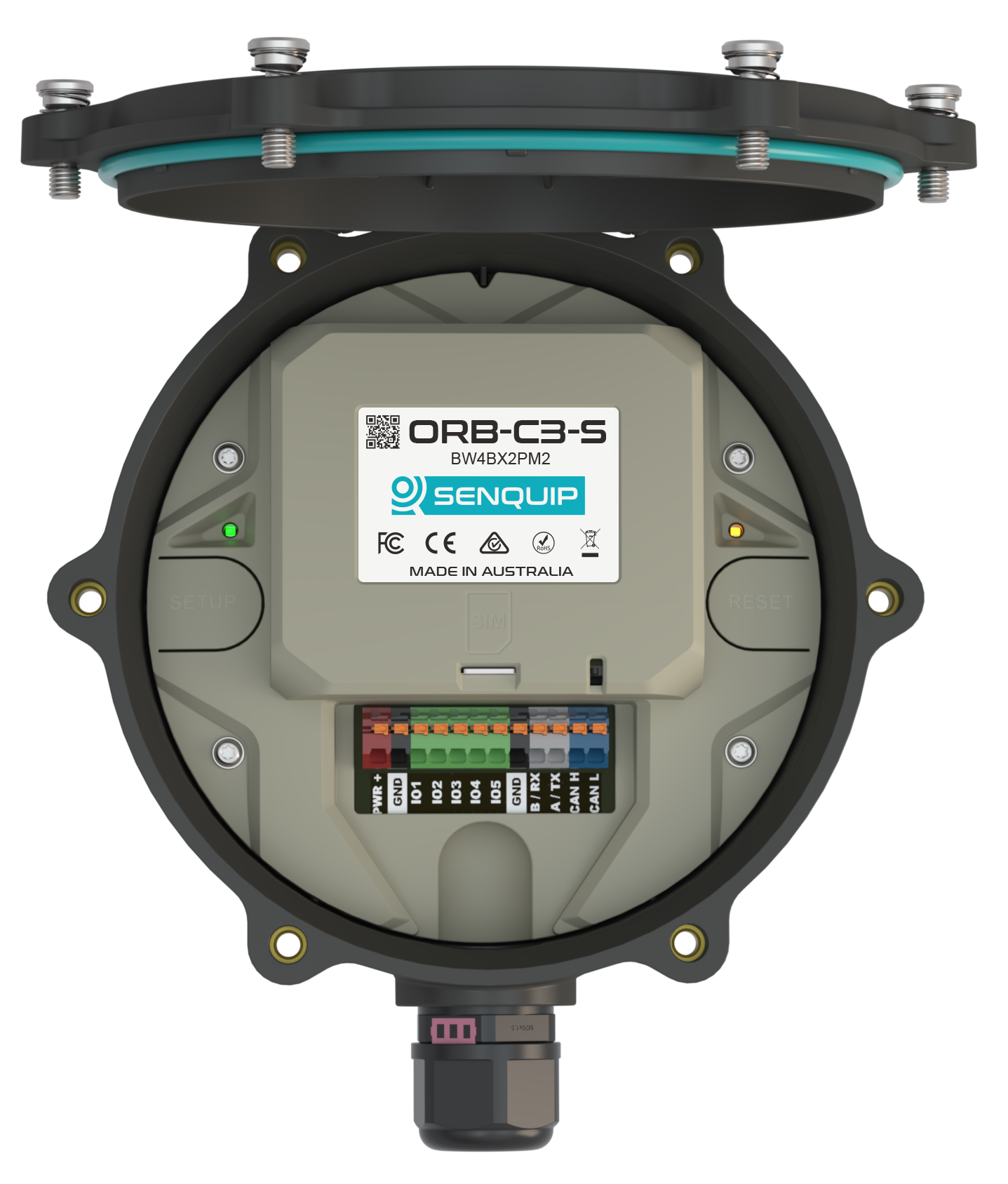

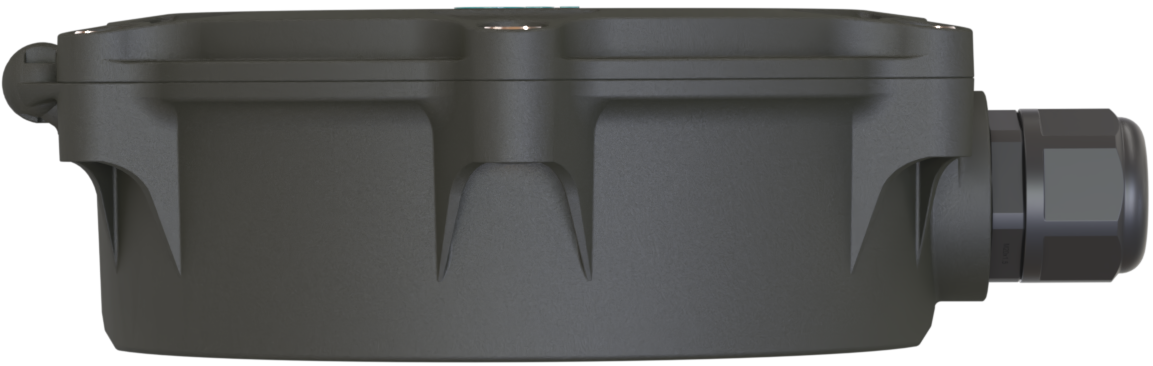

Mechanical Drawings

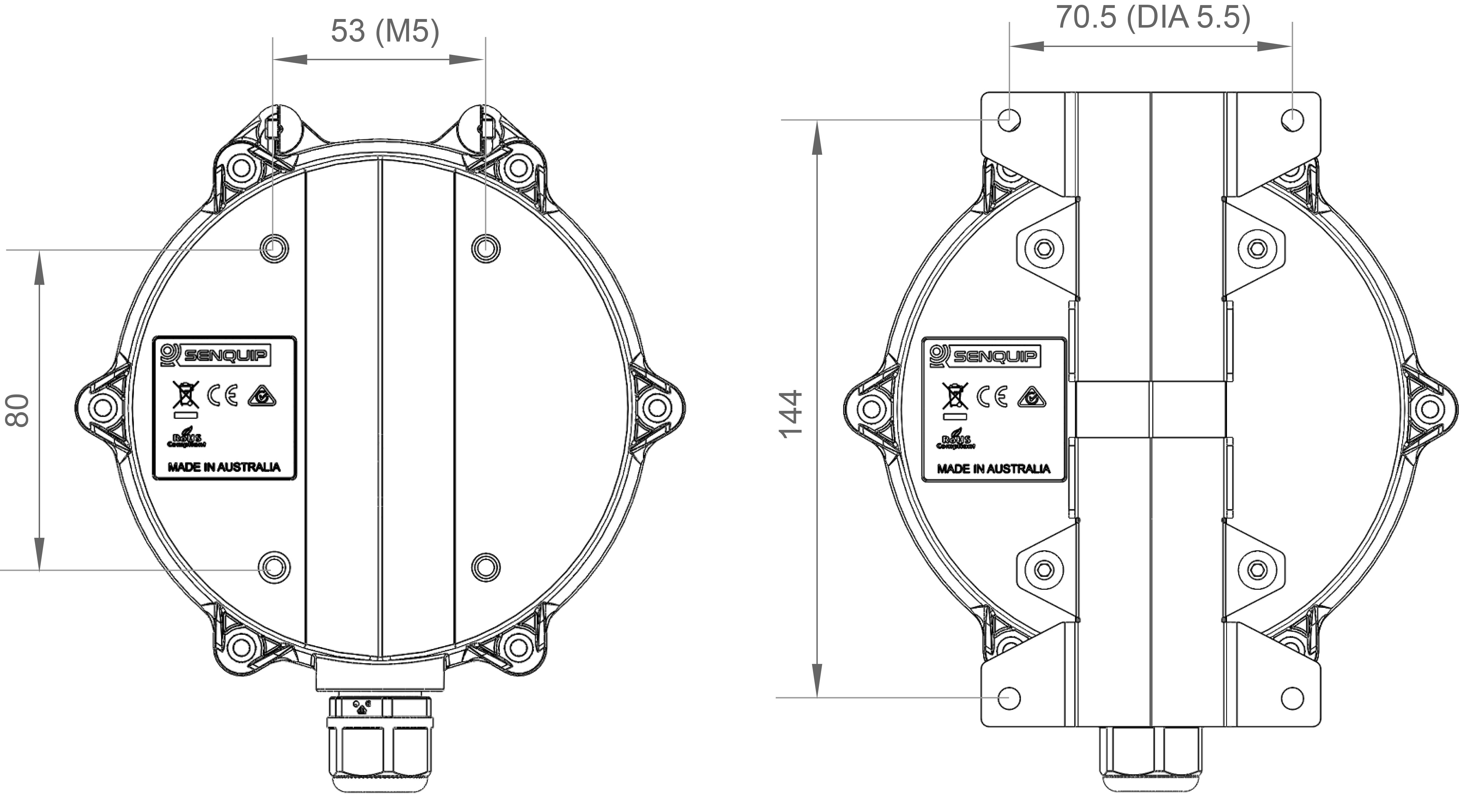

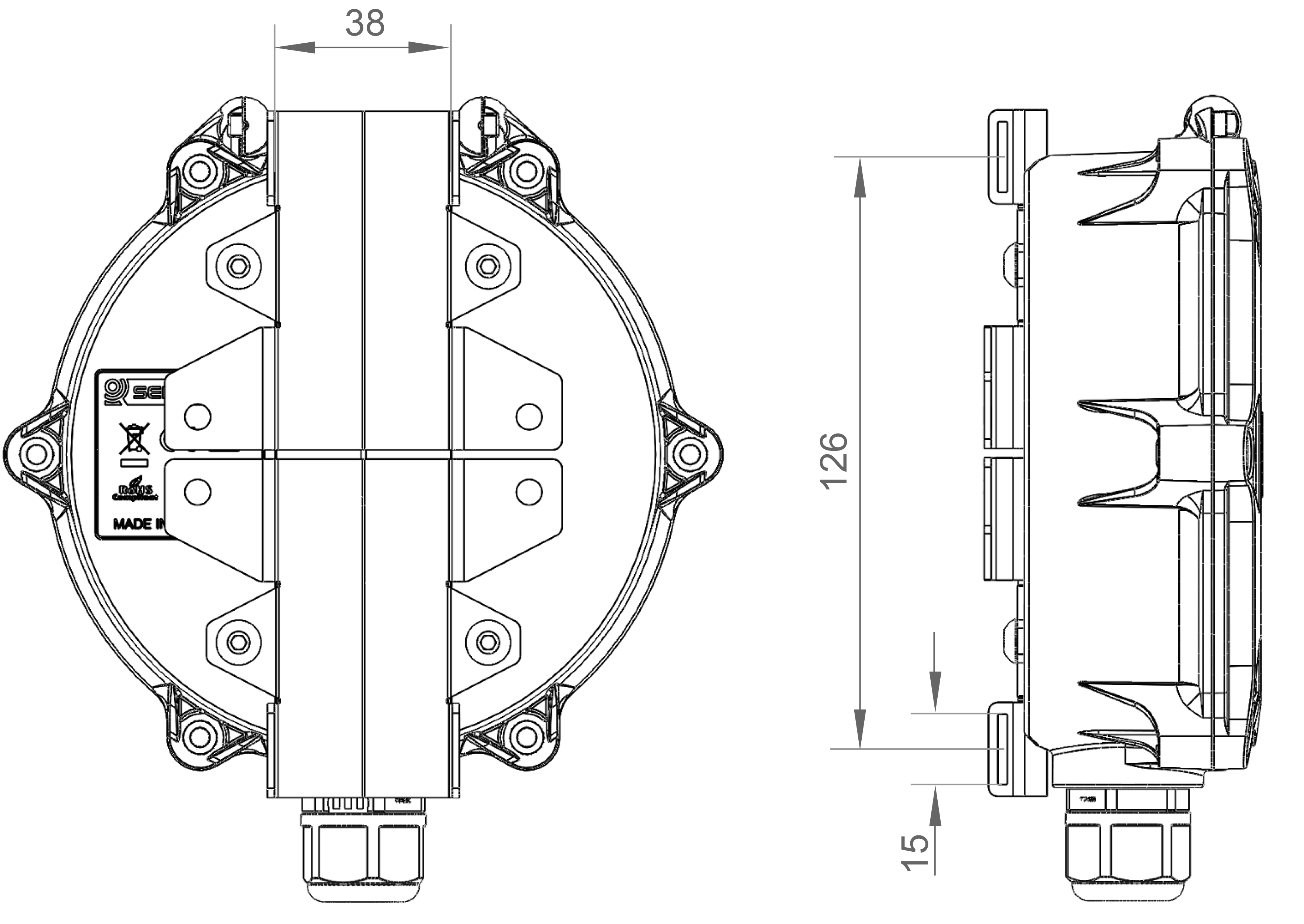

Critical dimensions for the ORB, mounting plate and mounting hardware are given below. Full three-dimensional models are available on request.

Note

All dimensions are in mm.

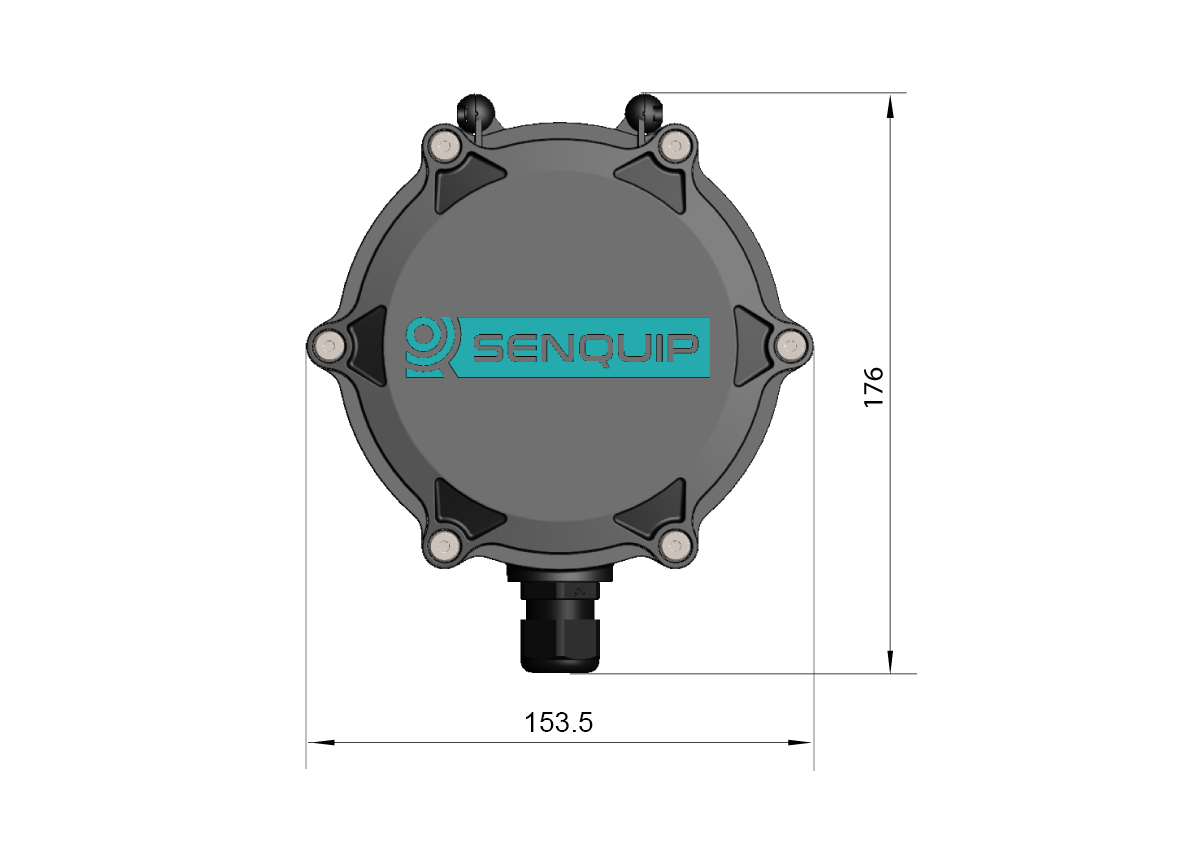

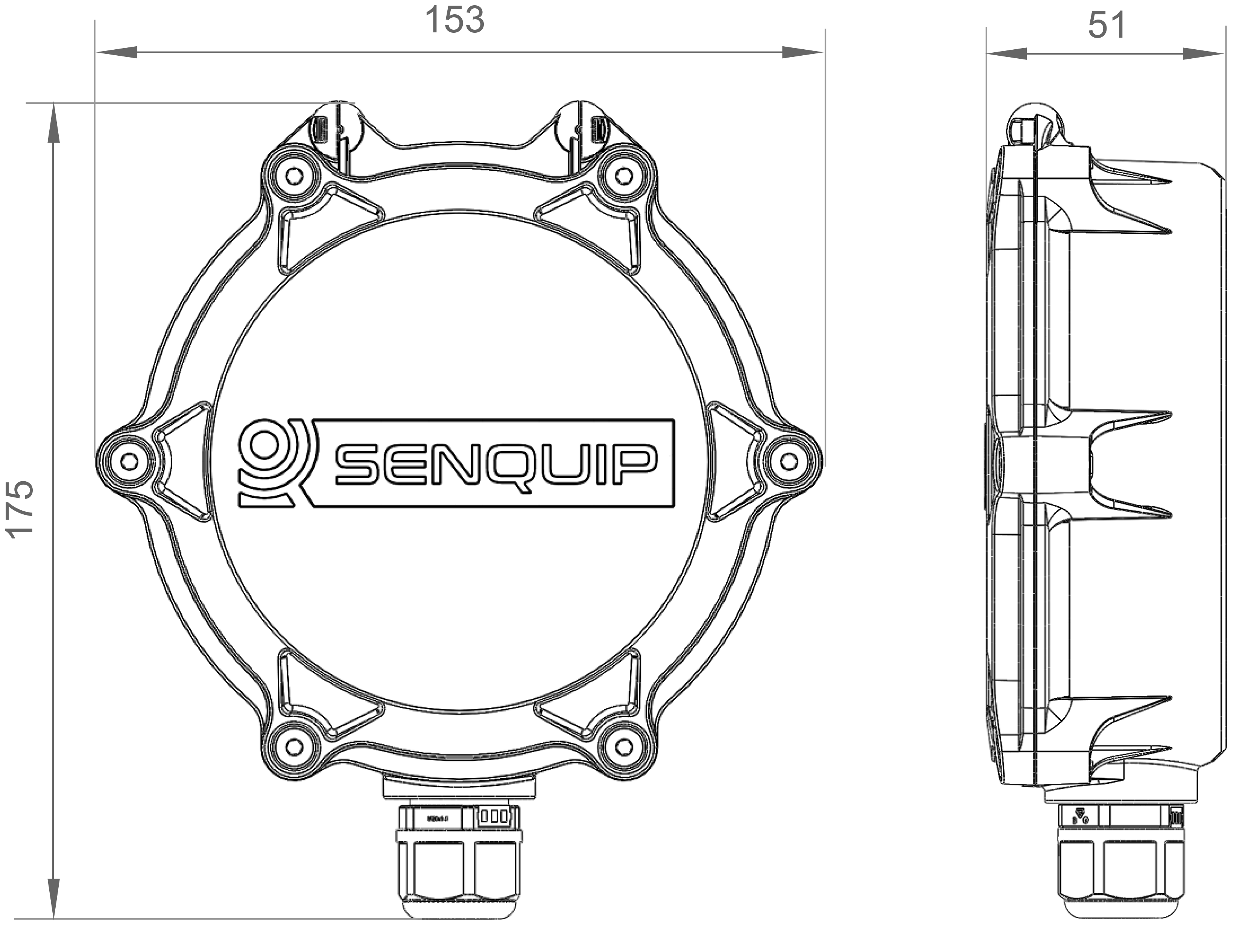

Dimensioned front view

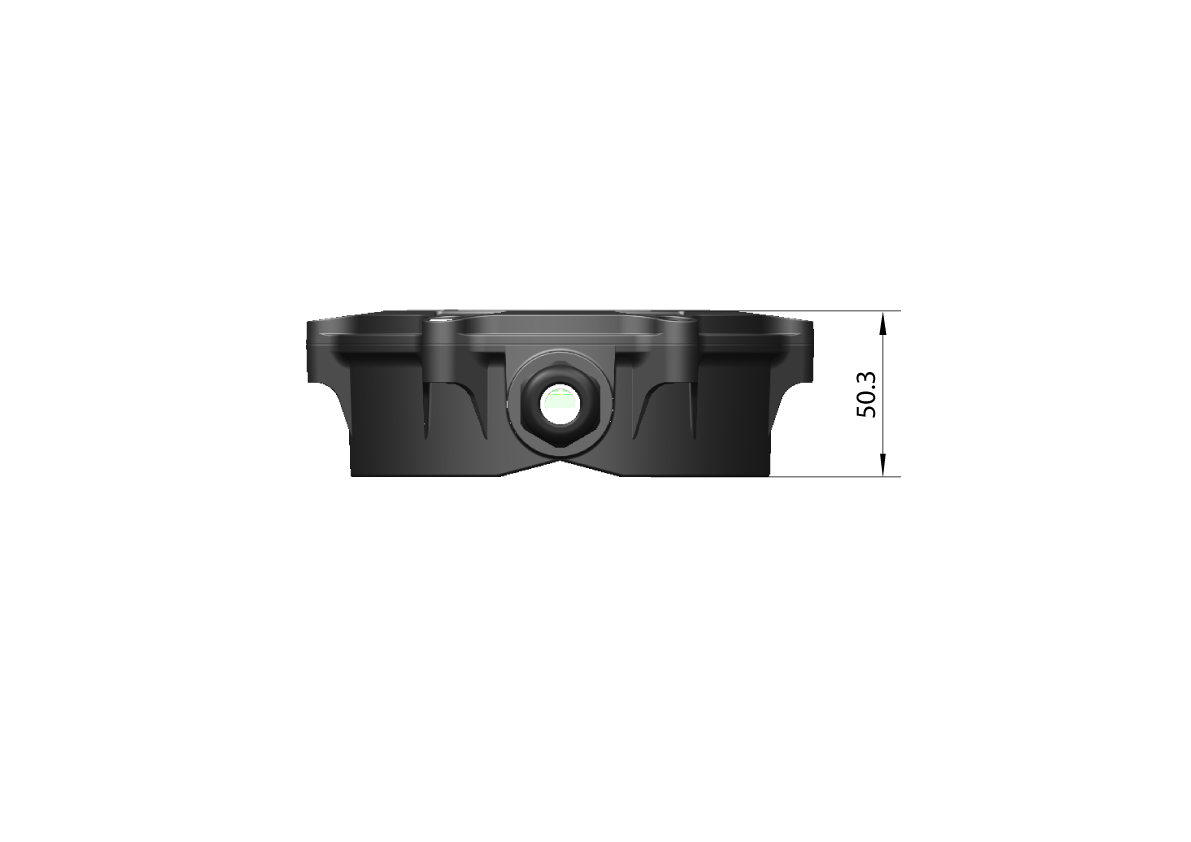

Dimensioned top view

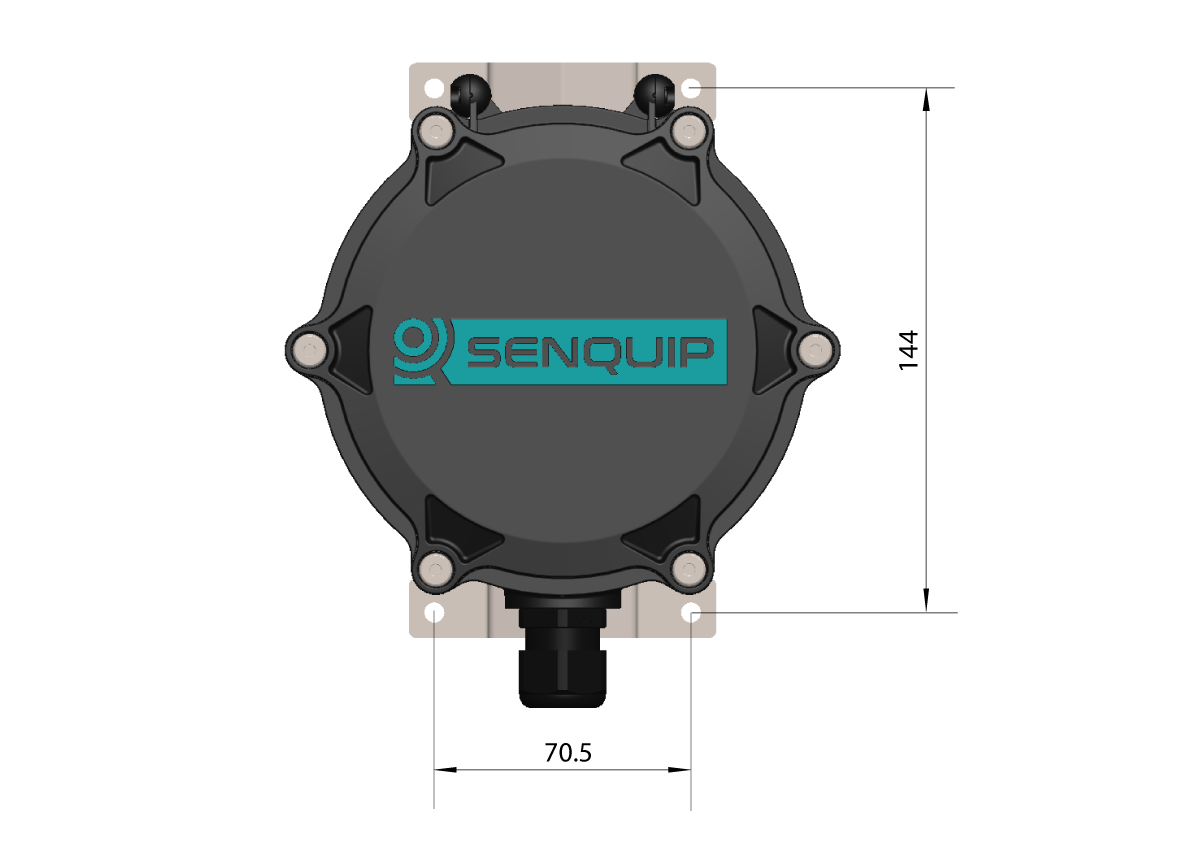

Dimensioned front view including mounting brackets

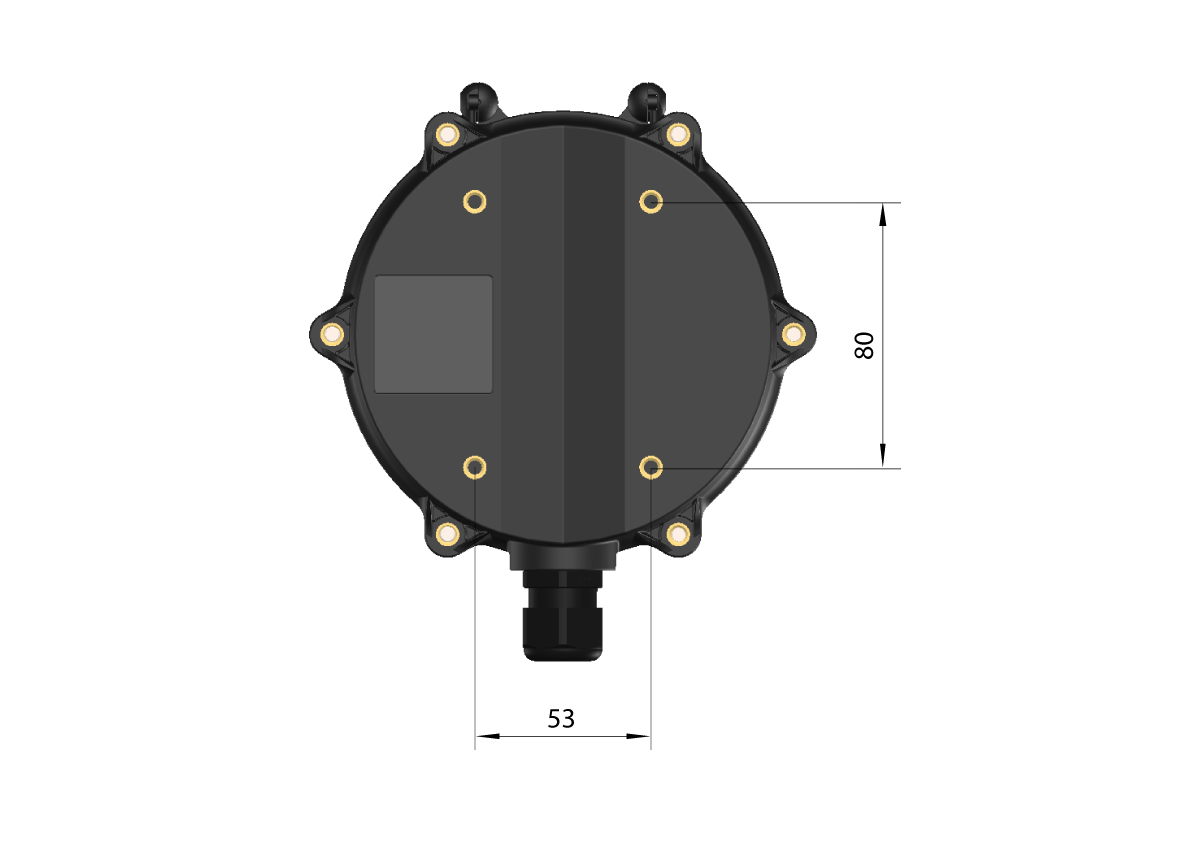

Dimensioned rear view

Environmental

The Senquip ORB-C3 is designed for use in harsh outdoor environments and is suitable for industrial, mining, fleet and agricultural applications.

The enclosure is rated to IP67, meaning that it is dust tight, with no ingress of dust permitted, and protected against the effects of immersion in water to a depth of 1 m for 30 minutes.

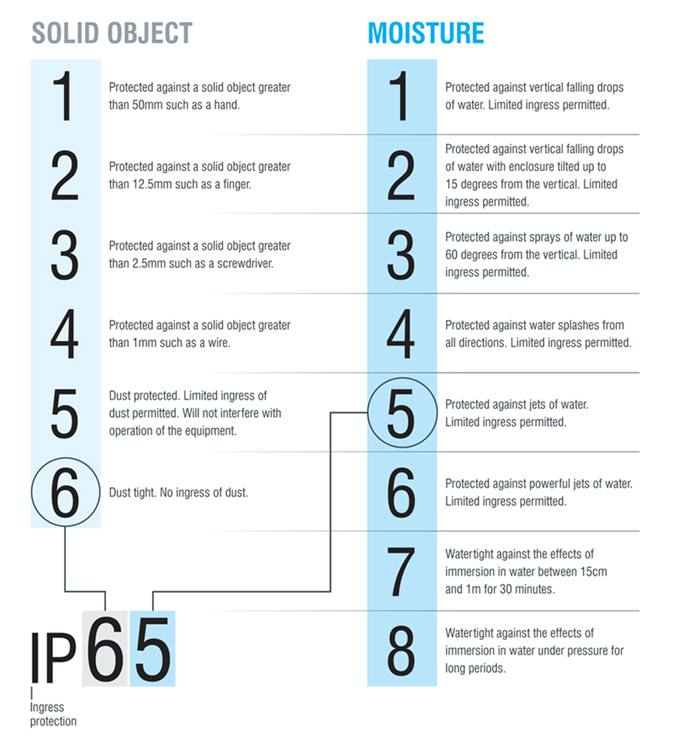

The chart below describes IP ratings and how to interpret them.

IP number description

An internal Gore vent allows pressure equalisation between the interior of the enclosure and the environment, helping prevent moisture from being drawn into the enclosure.

The Senquip ORB-C3 can be operated at temperatures between -30°C and 80°C.

Material Specification

The enclosure and fittings have been selected for resistance to salt spray and common industrial chemicals such as petro-carbons. UV-stabilised materials allow the ORB-C3 to be mounted in direct sunlight.

Component	Material
Enclosure and front cover	UL94-V0 fire-retardant glass-filled nylon
Enclosure front cover seal	Silicone
Captive cover screws	Stainless steel (304)
Cable gland	Polyamide
Gland insert	Nitrile Butadiene Rubber (NBR)
Optional mounting plate	Stainless steel (316)
